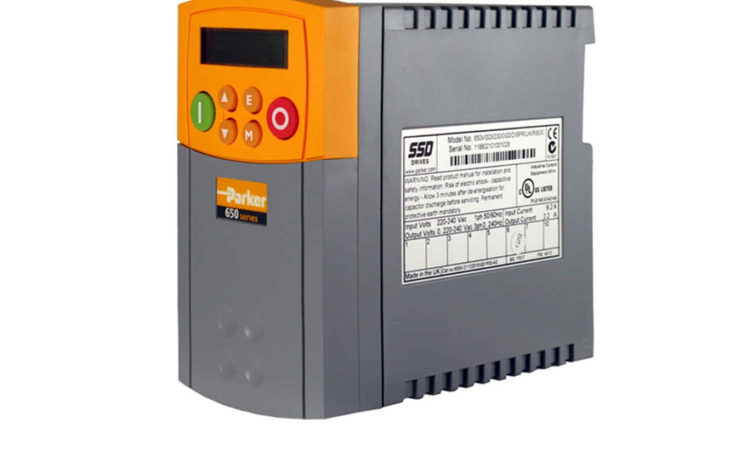

The Parker AC650G is an entry level adjustable speed drive designed to provide cost-effective control of AC induction motors used in many everyday industrial applications. Its simplicity makes the AC650G ideally suited for use in standalone motor applications where previously a drive would have been considered too complex.
The AC650G is ideally suited to energy saving in pump and fan applications and delivers reliable, cost-effective voltage/frequency or sensorless vector speed control of your motor.
To prevent unauthorized changes to drive configuration after setup, the operator/programming keypad can be removed or password protected.
The AC650G is an easy to use, out of the box solution that will have your system up and running in record time. It provides reliable, robust motor control from 0.3 HP through 10 HP.
Electrical Characteristics
Power supply
230V AC Single phase | 230V AC Three phase | Three phase 380V…460V
Input frequency 45…65 Hz
Output frequency 0…240 Hz
COMMUNICATION INTERFACE RS232 / RS485…
CERTIFICATES CE (EMC & LVD) | cUL Listed
Environmental Characteristics
Operating temperature 0…40 degree
Storage Temperature -25…+55 degree
Operating Altitude Up to 1100m
