Category: DC Drives

Parker DC Drives 590P & 591P

DC Drives, Parker SSD DC Drives 590P & 591P

Based on 40 years application experence all over the world.Parker design dc drives to help its clients improve productivity and reduce energy consumption. Currently,Parker has designed DC590+ Integrator Series 2 Digital DC Drive.The DC590+ dc drives use an advanced control platform to supply very good flexibility and performance.



DC590+ Drives have 590P 4 quadrant regenerative drive and 591P 2 quadrant non-regenerative drive.These two types are all good performance.Their current range from 15A to 2700A.Voltage range from 220V-500V(±10%) 50/60Hz,and 400V-690V(±10%) 50/60Hz option.



ELECTRICAL PARAMETERS

Current  Rating:

Frame 1 : 15A , 35A
Frame 2 : 40A , 70A , 110A , 150A , 165A
Frame 3 : 180A , 270A
Frame 4 : 380A , 500A , 725A , 830A
Frame 6 : 1250A , 1600A , 1950A
Frame H : 1200A , 1700A , 2200A,2700A

Input Voltage

Three phase AC 230V | Three phase AC 380-480V | Three phase AC 500-690V

Output Power (HP)

1 – 2000HP

Communication Interface

RS232 | RS485 | CANopen  | Modbus | Profibus | Ethernet TCP / IP

CERTIFICATES

CE (EMC & LVD) | cUL Listed | UL Listed |

Feedback options

 Armature Voltage |  Encoder |Tachometer

Operating temperature

 Frame : 1-2 0-45C  | Frame 3-H : 0-40C

Overload value

150 % for 30s | 200% for 10s | Higher ratings with reduced overload are available

Parker 590  DC Drives Part Numbers list:

Part No. Current Power Part No. Current Size(mm)
590P/15A 15A 7.5KW 591P/15A 15A 200*375*220
590P/35A 35A 15KW 591P/35A 35A 200*375*220
590P/40A 40A 18.5KW 591P/40A 40A 200*434*292
590P/70A 70A 30KW 591P/70A 70A 200*434*292
590P/110A 110A 45KW 591P/110A 110A 200*434*292
590P/165A 165A 60KW 591P/165A 165A 200*434*292
590P/180A 180A 75KW 591P/180A 180A 250*485*234
590P/270A 270A 110KW 591P/270A 270A 300*485*234
590P/380A 380A 160KW 591P/380A 380A 253*700*358
590P/500A 500A 200KW 591P/500A 500A 253*700*358
590P/725A 725A 300KW 591P/725A 725A 253*700*358
590P/830A 830A 315KW 591P/830A 830A 253*700*358
590P/1580A 1580A 600KW 591P/1580A 1580A 506*700*358
590P/2200A 2200A 830KW 591P/2200A 2200A 850*1406*417
590P/2700A 2700A 1000KW 591P/2700A 2700A 850*956*417

Parker 590 Power Bridge:
590P : 4 Quadrant Regenerative DC Drives : Dual Three Phase SCR bridges
591P : 2 Quadrant Non-Regenerative DC Drives: Single SCR bridge

Parker dc drives 590 15A-2700A Framework,Frame 1- Frame 6

590-series-dc-digital-drive-frame1-Frame6







ssd-drives-590c

Eurotherm Drives 590C & 591C

DC Drives, SSD DC Drives 590C & 591C

Eurotherm 590C & 591C are digital dc drives,designed for use in a suitable enclosure,with associated control equipment.590+ DC drives have two type models,590C DC Drives and 591C DC Drives,590C is 4Q reversible DC drive,and 591C is 2Q no-reversible DC drive.Their current range from 15A to 720A.Voltage range from 220V-500V(±10%) 50/60Hz.

Eurotherm 590 product range:

590C : Three phase 4 quadrant regenerative converter up to 720A
591C  : Three phase 2 quadrant non-regenerative converter up to 720A

Eurotherm 590 series part number table:

Part No. Current Power Part No. Current Size(mm)
590C/35A 35A 15KW 591C/35A 35A 250*415*180
590C/70A 70A 30KW 591C/70A 70A 250*415*180
590C/110A 110A 45KW 591C/110A 110A 250*445*180
590C/150A 150A 60KW 591C/150A 150A 250*445*180
590C/180A 180A 75KW 591C/180A 180A 250*555*180
590C/270A 270A 110KW 591C/270A 270A 300*500*210

ELECTRICAL PARAMETERS

Power supply                                                3 Phase*220-500VAC(±10%)

Output voltage value                                  35 – 720A

Power (KW)                                                    15– 250KW

Feedback options                                         Encoder | Armature Voltage | Tachometer

Communication                                             RS232 / RS485 |Profibus | Modbus

OPERATING CONTROL MODES                 Regenerative | Non-Regenerative | Stack Controller

OPERATING TEMPERATURE (C)                  0-45C (15-165A) / 0-35C (180-270A) / 0-40C (380-2700A) / derate up to 55C max

OPERATING TEMPERATURE (F)                  32-113F (15-165A) / 32-95F (180-270A) / 32-104F (380-2700A) / derate up to 131F max

Eurotherm 590 series outline drawing:

eurotherm 590c outline drawing









Parker SSD DC Drives 514C & 512C

DC Drives

The 514C controller is intended for use in an Industrial Environment, it should be mounted within an enclosure which provides protection to the controller and the user.

The controller should be permanently earthed at the terminals provided.

The 514C controller is designed to control the speed of a DC Shunt wound or permanent magnet motor. It will provide control of the motor speed in all 4 Quadrants of operation.

The controllers are designed to operate from a single phase AC mains supply in the range of 110 Vac to 415 Vac at 50 or 60 Hz. An auxiliary supply is required for internal power supply generation and main supply contactor sequencing. Coding is derived from the main power terminals and is functional over the whole input voltage range.The Speed of the DC Motor is controlled using a linear closed loop system with a feedback signal from either tachogenerator or armature voltage, the feedback source being switch selectable.A current loop within the speed loop always ensures that controlled levels of current are applied to the motor, actual levels being scaleable via programmable switches.Motor protection is provided by a Stall detection circuit which will remove current from the motor after approximately 60 seconds.Controller protection is provided by an Instantaneous Overcurrent trip circuit overriding control in the event of a Short Circuit.



Technical Specification

AC Supply Voltage                               Single Phase 110V-480V ；50-60Hz

Current Rating                                     4A / 8A / 16A / 32A

Overload                                               150% for 60 seconds

Voltage selection                                Jumper selection of supply voltage

Speed Control                                     20:1 (arm v f/b),100:1 (tach fb)

Digital Inputs                                      Run,Enable,Stall override

Digital Outputs                                   Drive health

OPERATING ALTITUDE                      Up to 1000m ASL



Parker 514C & 512C Part Number:

Part No. Current Part No. Current Part No. Current
506/3A 3A 512C/8A 8A 514C/8A 8A
507/6A 6A 512C/16A 16A 514C/16A 16A
508/12A 12A 512C/32A 32A 514C/32A 32A

Parker 514C 512C Power Bridge:
514C : 4 Quadrant Regenerative , Dual Three Phase SCR bridges
512C  : 2 Quadrant Non-Regenerative , Single SCR bridge
Variable Field Control with SCR’s

Output Current Values:
4A / 8A / 16A / 32A

Typical applications :

  • Machine tool spindles
  • Wire drawing machines
  • Winders/Reelers

Parker 514C 512C Installation Procedure

INSTALLATION PRECAUTIONS

Before connecting AC supplies to this equipment:

1) Ensure good airflow over the heatsink. Maintain clearance of 75mm above and below

controller. For safety maintain a clearance of 20mm at the sides of the controller.

2) Operating temperature range does not exceed 0 to +40.

3) Controller is used in a Pollution Degree 2 environment.

4) Avoid vibration.

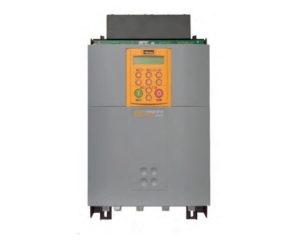

598P 599P External stack controller dc digital drive

598P 599P External stack controller dc digital drive, DC Drives

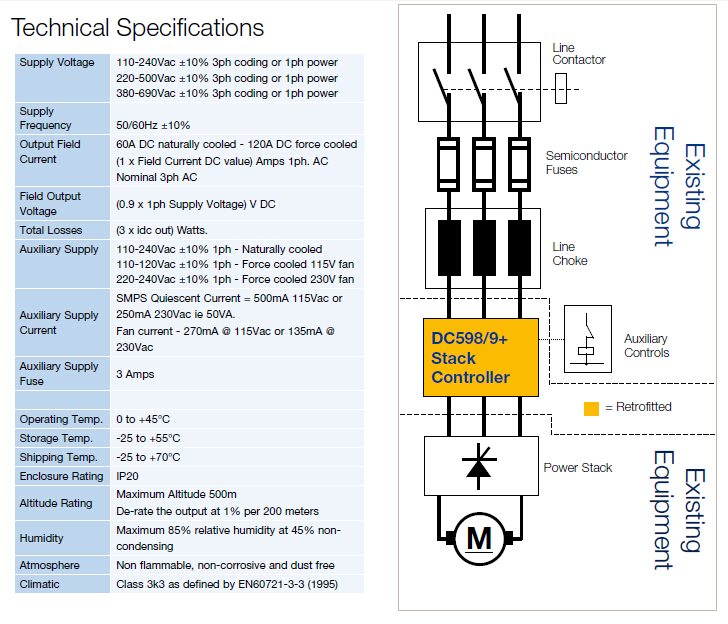

The 598/9P External Stack Controller Assembly provides the Hardware necessary to interface the 590Plus Control Door to an existing 3 Phase Stack assembly. The Design assumes that a Fully Controlled 3 Phase Six Pulse Converter exists which is complete with Thyristor Suppression, Current Feedback, Temperature Monitoring and Suitable Fusing.

The 598/599P External Stack Controller Assembly provides the Hardware necessary to interface the 590Plus Control Door to an existing 3 Phase Stack assembly. The Design assumes that a Fully Controlled 3 Phase Six Pulse Converter exists which is complete with Thyristor Suppression, Current Feedback, Temperature Monitoring and Suitable Fusing.

When upgrading machines equipped with older high power DC drives, the most cost-effective and quickest way is often to reuse the existing SCR power stack, which in most cases will be in perfect working order.

To preserve your investment, Parker SSD Drives has developed a DC598+/DC599+ power stack controller offer specially aimed at retrofit applications and based on the DC590+ controller.

Available in 2 versions, the DC599+ two quadrant nonregenerative and DC598+ four quadrant full-regenerative versions, can be used to drive the power stacks of existing DC drives manufactured by Parker SSD or other manufacturers, delivering the benefits of the recent technological innovations of the DC590+ Series 2 drive.

The DC598+ and DC599+ offer the ability to upgrade your equipment quickly and easily and integrates with your existing control equipment or SCADA package.

The DC598+ and DC599+ retrofit solutions are recommended for currents above 800A.



Product:
598P : 590+ External Stack Controller 4Q DC Drive
591+  : 591+ External Stack Controller 2Q DC Drive

Four Digits describing the Maximum Field DC Current Output.

0060 = 60 Amps
0120 = 120 Amps

Three Digits describing the Nominal 3 Phase Supply Voltage.

240 = 110 to 240 Vac ±10% 50/60Hz. – Low Voltage Build.

500 = 220 to 500 Vac ±10% 50/60Hz. – Medium Voltage Build.

690 = 380 to 690 Vac ±10% 50/60Hz. – High Voltage Build

dc-598p-599p-stack-controller
