Based on 40 years application experence all over the world.Parker design dc drives to help its clients improve productivity and reduce energy consumption. Currently,Parker has designed DC590+ Integrator Series 2 Digital DC Drive.The DC590+ dc drives use an advanced control platform to supply very good flexibility and performance.
DC590+ Drives have 590P 4 quadrant regenerative drive and 591P 2 quadrant non-regenerative drive.These two types are all good performance.Their current range from 15A to 2700A.Voltage range from 220V-500V(±10%) 50/60Hz,and 400V-690V(±10%) 50/60Hz option.
ELECTRICAL PARAMETERS
Current Rating:
Frame 1 : 15A , 35A
Frame 2 : 40A , 70A , 110A , 150A , 165A
Frame 3 : 180A , 270A
Frame 4 : 380A , 500A , 725A , 830A
Frame 6 : 1250A , 1600A , 1950A
Frame H : 1200A , 1700A , 2200A,2700A
Input Voltage
Three phase AC 230V | Three phase AC 380-480V | Three phase AC 500-690V
Output Power (HP)
1 – 2000HP
Communication Interface
RS232 | RS485 | CANopen | Modbus | Profibus | Ethernet TCP / IP
CERTIFICATES
CE (EMC & LVD) | cUL Listed | UL Listed |
Feedback options
Armature Voltage | Encoder |Tachometer
Operating temperature
Frame : 1-2 0-45C | Frame 3-H : 0-40C
Overload value
150 % for 30s | 200% for 10s | Higher ratings with reduced overload are available
Parker 590 DC Drives Part Numbers list:
| Part No. | Current | Power | Part No. | Current | Size(mm) |
| 590P/15A | 15A | 7.5KW | 591P/15A | 15A | 200*375*220 |
| 590P/35A | 35A | 15KW | 591P/35A | 35A | 200*375*220 |
| 590P/40A | 40A | 18.5KW | 591P/40A | 40A | 200*434*292 |
| 590P/70A | 70A | 30KW | 591P/70A | 70A | 200*434*292 |
| 590P/110A | 110A | 45KW | 591P/110A | 110A | 200*434*292 |
| 590P/165A | 165A | 60KW | 591P/165A | 165A | 200*434*292 |
| 590P/180A | 180A | 75KW | 591P/180A | 180A | 250*485*234 |
| 590P/270A | 270A | 110KW | 591P/270A | 270A | 300*485*234 |
| 590P/380A | 380A | 160KW | 591P/380A | 380A | 253*700*358 |
| 590P/500A | 500A | 200KW | 591P/500A | 500A | 253*700*358 |
| 590P/725A | 725A | 300KW | 591P/725A | 725A | 253*700*358 |
| 590P/830A | 830A | 315KW | 591P/830A | 830A | 253*700*358 |
| 590P/1580A | 1580A | 600KW | 591P/1580A | 1580A | 506*700*358 |
| 590P/2200A | 2200A | 830KW | 591P/2200A | 2200A | 850*1406*417 |
| 590P/2700A | 2700A | 1000KW | 591P/2700A | 2700A | 850*956*417 |
Parker 590 Power Bridge:
590P : 4 Quadrant Regenerative DC Drives : Dual Three Phase SCR bridges
591P : 2 Quadrant Non-Regenerative DC Drives: Single SCR bridge

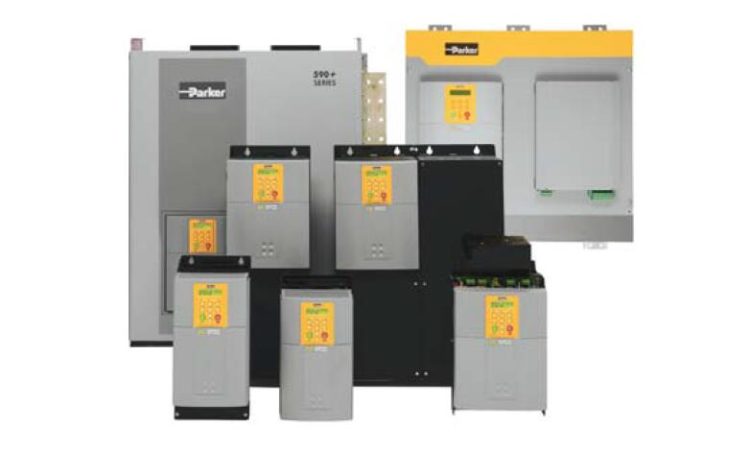

Parker dc drives 590 15A-2700A Framework,Frame 1- Frame 6
