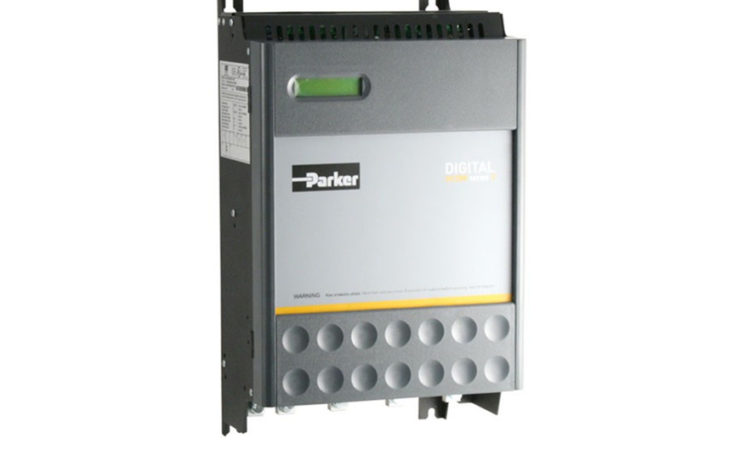

Eurotherm 590C & 591C are digital dc drives,designed for use in a suitable enclosure,with associated control equipment.590+ DC drives have two type models,590C DC Drives and 591C DC Drives,590C is 4Q reversible DC drive,and 591C is 2Q no-reversible DC drive.Their current range from 15A to 720A.Voltage range from 220V-500V(±10%) 50/60Hz.
Eurotherm 590 product range:
590C : Three phase 4 quadrant regenerative converter up to 720A
591C : Three phase 2 quadrant non-regenerative converter up to 720A
Eurotherm 590 series part number table:
| Part No. | Current | Power | Part No. | Current | Size(mm) |
| 590C/35A | 35A | 15KW | 591C/35A | 35A | 250*415*180 |
| 590C/70A | 70A | 30KW | 591C/70A | 70A | 250*415*180 |
| 590C/110A | 110A | 45KW | 591C/110A | 110A | 250*445*180 |
| 590C/150A | 150A | 60KW | 591C/150A | 150A | 250*445*180 |
| 590C/180A | 180A | 75KW | 591C/180A | 180A | 250*555*180 |
| 590C/270A | 270A | 110KW | 591C/270A | 270A | 300*500*210 |
ELECTRICAL PARAMETERS
Power supply 3 Phase*220-500VAC(±10%)
Output voltage value 35 – 720A
Power (KW) 15– 250KW
Feedback options Encoder | Armature Voltage | Tachometer
Communication RS232 / RS485 |Profibus | Modbus
OPERATING CONTROL MODES Regenerative | Non-Regenerative | Stack Controller
OPERATING TEMPERATURE (C) 0-45C (15-165A) / 0-35C (180-270A) / 0-40C (380-2700A) / derate up to 55C max
OPERATING TEMPERATURE (F) 32-113F (15-165A) / 32-95F (180-270A) / 32-104F (380-2700A) / derate up to 131F max
Eurotherm 590 series outline drawing:
